CAD Models

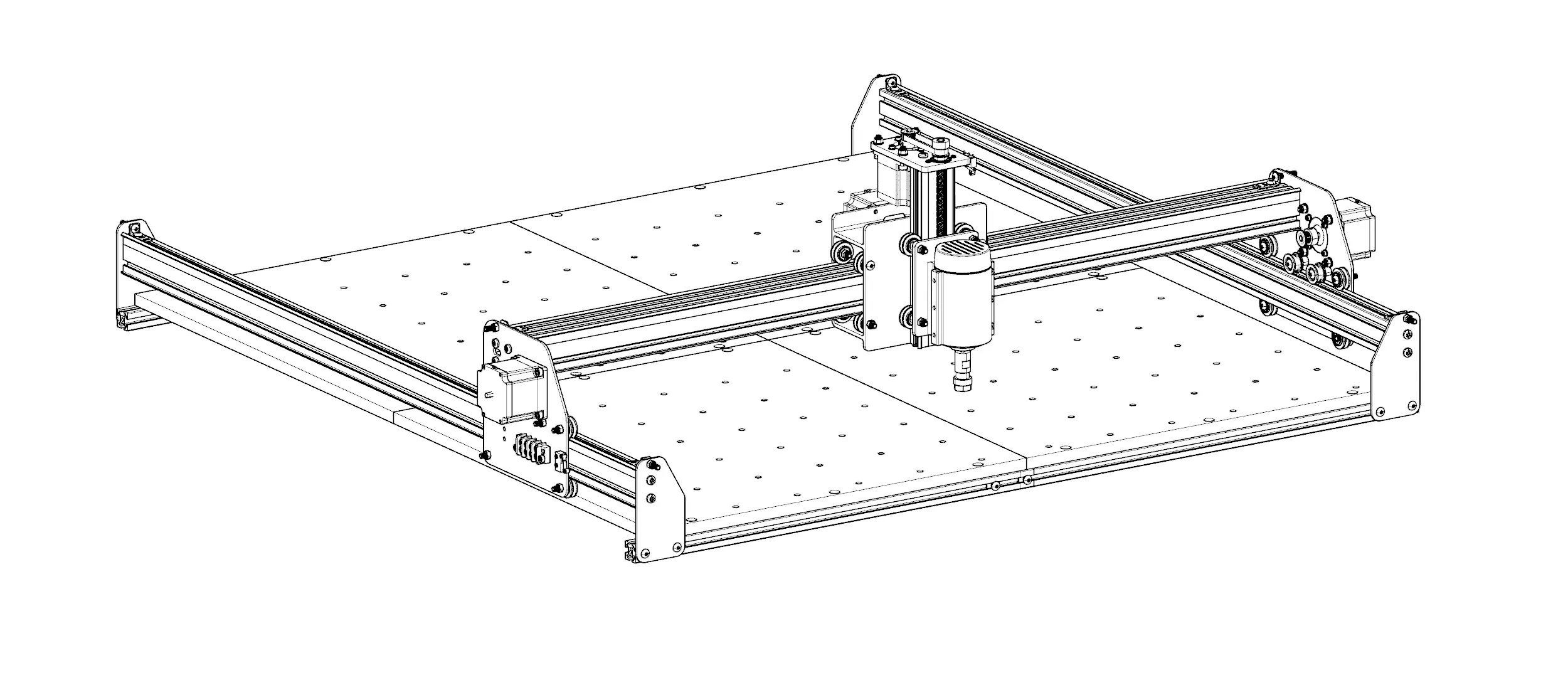

X Carve 1000mm
The model for the X-Carve 1000mm and its parts is available on GrabCAD Workbench.

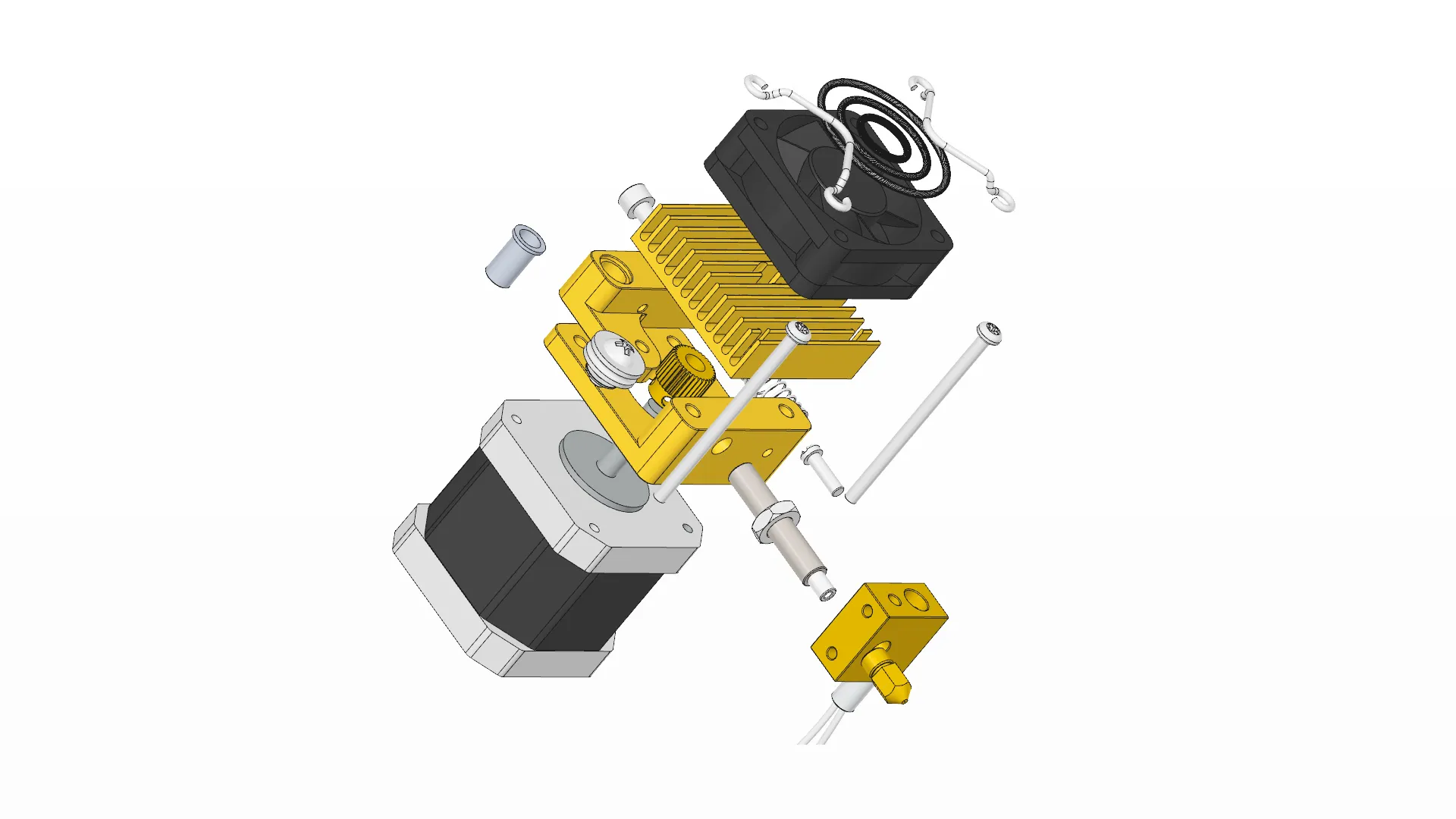

Extruder Original CAD
The reference file for the 3D printer extruder was taken from GrabCAD Library.

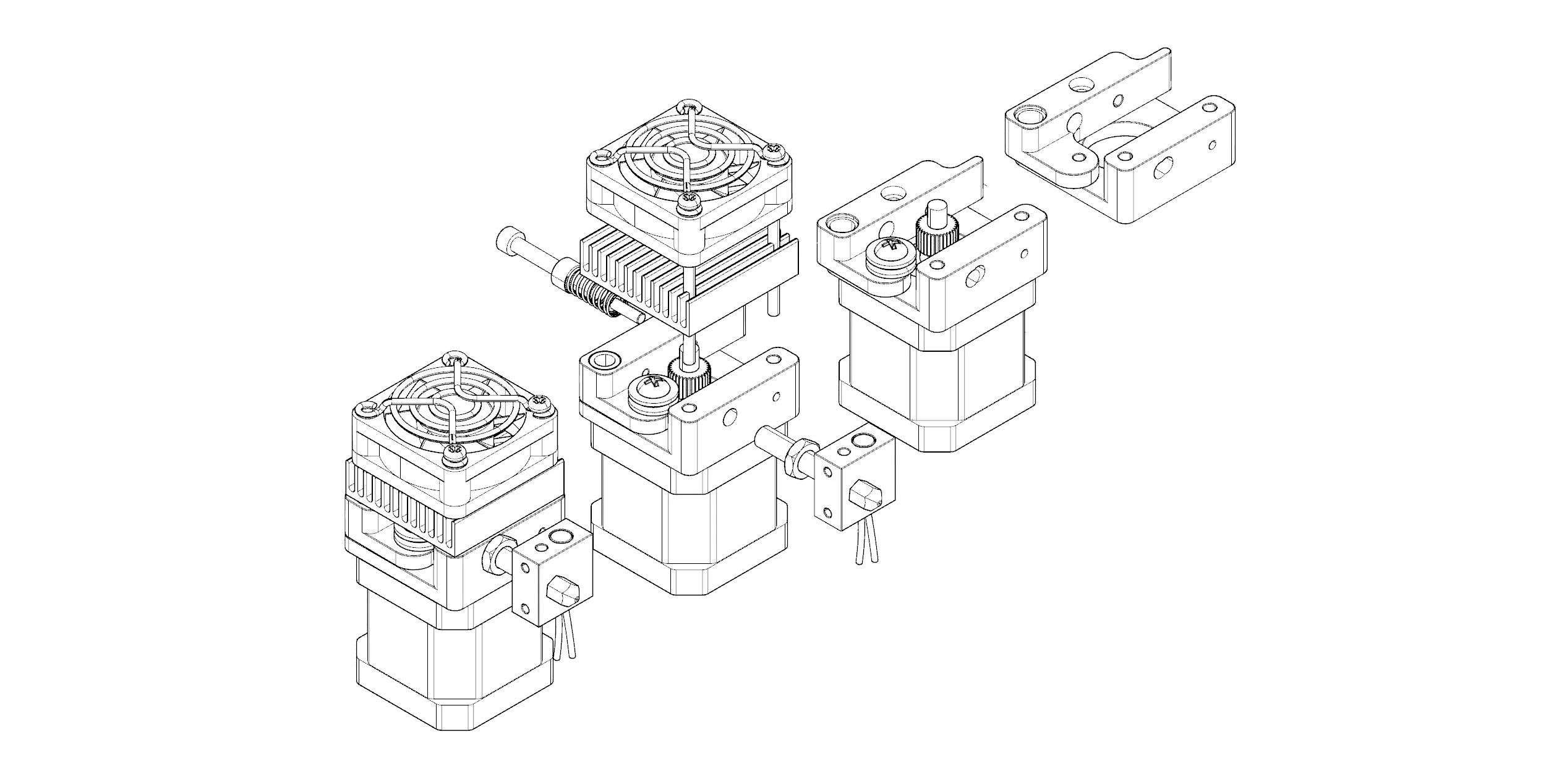

Extruder Modification
The extruder will require to be machined in order to enlarge the feed and extrusion openings. More details can be found in the linked CAD files. It is highly recommended to carry out your own measurements specific to the extruder you own. These drawings are intended to provide a guide to share the required modifications.
Download .3dm Rhino File | Download .stp File

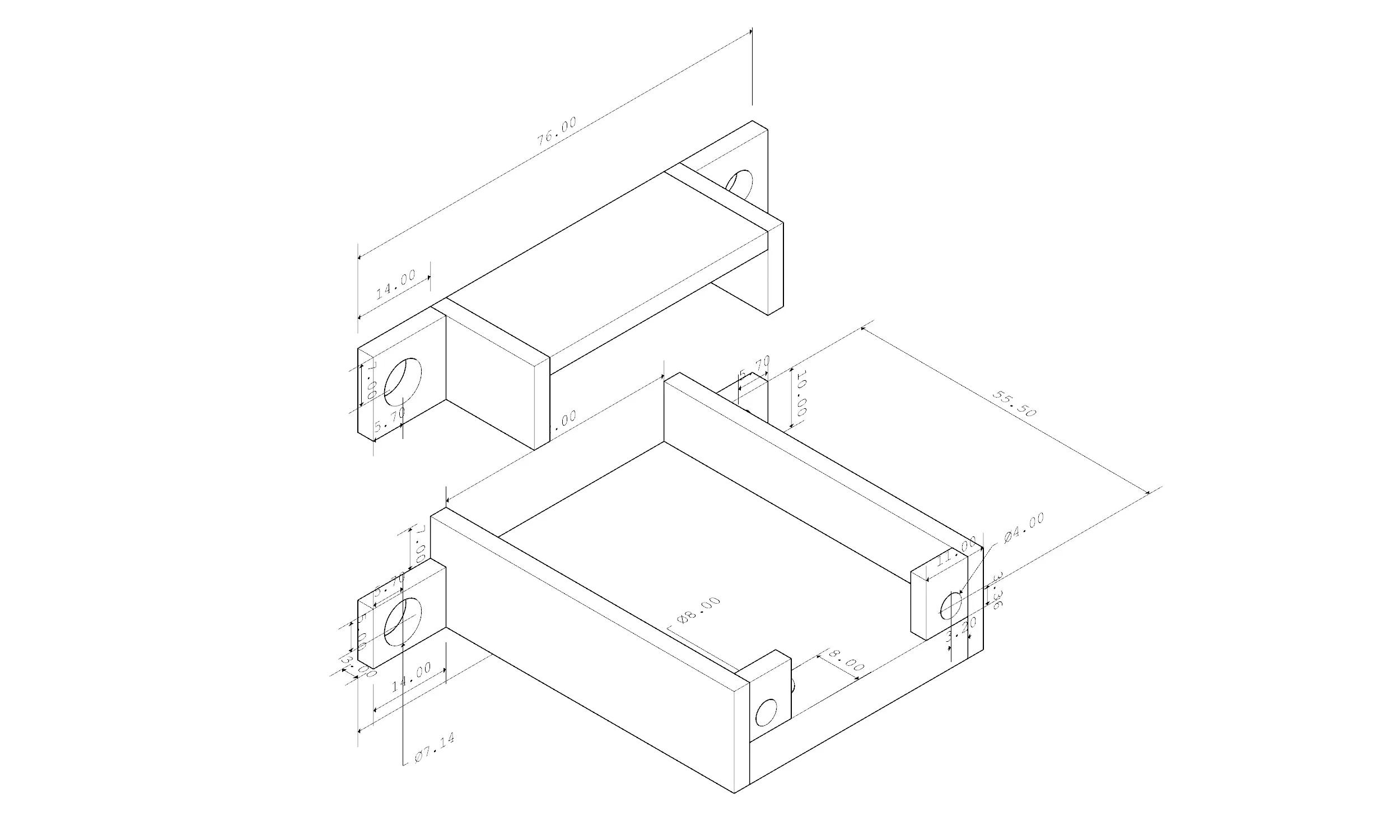

Aluminium Mounts for the Extruder
You’ll need some basic experience for Lathe Machining. Please seek help from a workshop technician for extra assistance. The drawings are annotated with measurements in the Rhino file. They may vary depending upon the model of your extruder and the glass rods you own.
Download .3dm Rhino File | Download .stp File

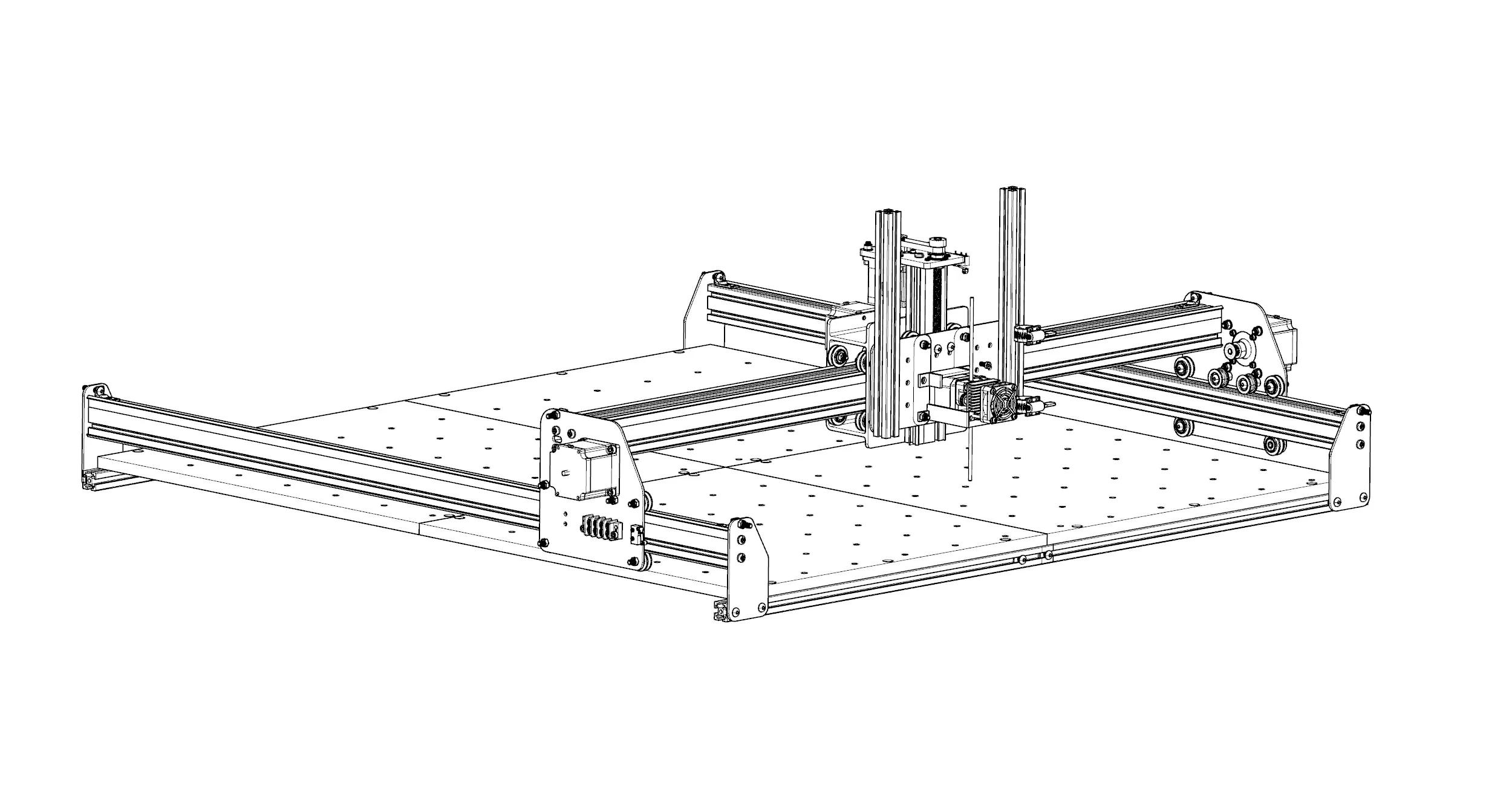

Final Assembly
